Product Details:
|
| Typical Application: | Liquid Level | Product Models: | NY-UHZ |
|---|---|---|---|
| Installation Form: | Top Mounted | Body Material: | 316 |
| Measuring Range: | 0~ 6.0 M | Measurement Precision: | ±3 Mm |
| Medium Density: | ≥ 0.425 G/cm3 | Density Difference: | ≥ 0.1 G/cm3 |
| High Light: | Liquid Magnetic Flap Level Gauge,Magnetic Flap Level Gauge 20mA |
||

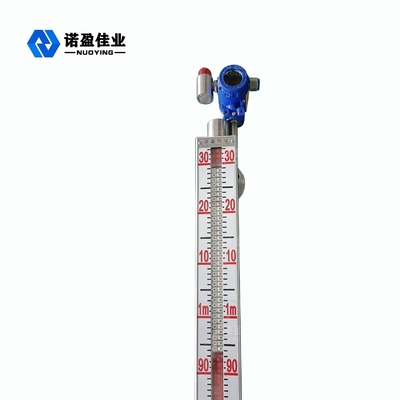

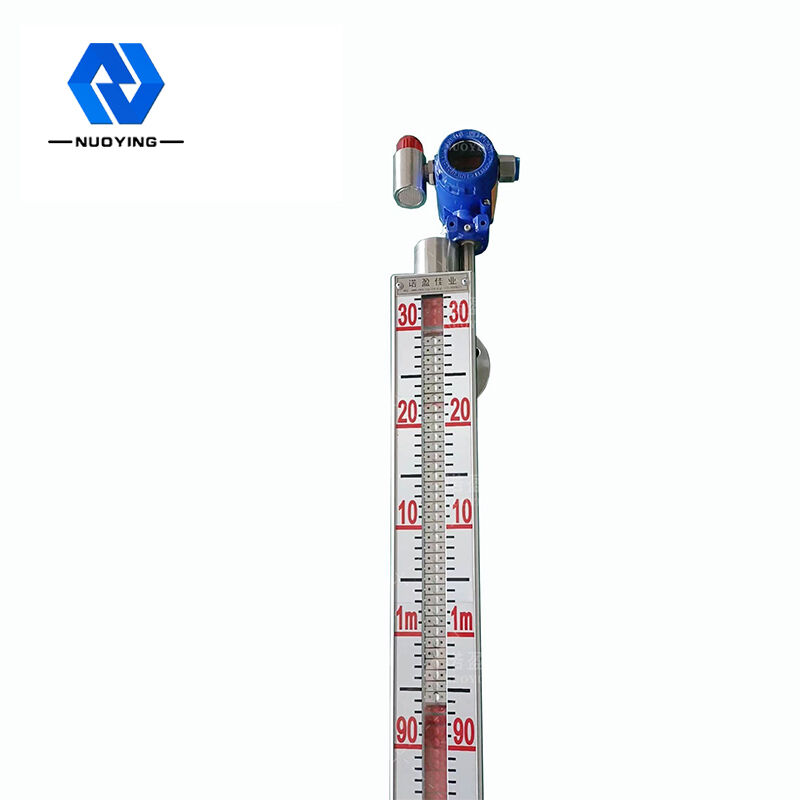

4-20mA Side Mounted Magnetic Flap Level Gauge
Working Principle of 4-20mA Side Mounted Magnetic Flap Level Gauge
Magnetic flap level gauge (also known as magnetic float level gauge) is developed based on the principle of buoyancy and magnetic coupling. When the liquid level in the measured container rises and falls, the magnetic float in the body tube of the liquid level gauge also rises and falls, and the permanent magnet in the float is transmitted to the magnetic flip column indicator through magnetic coupling, driving the red and white flip columns to flip 180 °, when the liquid level rises, the flip column changes from white to red, and when the liquid level drops, the flip column changes from red to white, and the red and white junction of the indicator is the actual height of the liquid level inside the container, so as to achieve a clear liquid level. instruct.
Design feature of 4-20mA Side Mounted Magnetic Flap Level Gauge
◎ simple structure, solid and reliable, stable operation
◎ on site display scale is clear, striking and easy to read
◎ it can measure and indicate the liquid level with corrosive, flammable, toxic, high-temperature and agitated contaminated liquid
◎ multiple installation forms and connection forms can be selected
◎ design pressure range: full vacuum to 10MPa
◎ design temperature range: - 160 ~ + 450 ℃
◎ professional design for special pressure and temperature
Technical parameters of 4-20mA Side Mounted Magnetic Flap Level Gauge
| Typical application | Liquid level measurement |
|
product model |
NYUHZ |
| Installation form | Side mounted, top mounted |
| Body Material | 304,316 |
| measuring range | 0~6m |
| Measurement precision | ±3mm,±5mm, ±10mm, ±20mm (selectable) |
| Medium density | ≥0.425g/cm3 |
| Density difference | ≥0.1g/cm3 |
| Medium viscosity | ≤0.4Pa.S |
| Control output | 220VAC,1A |
| Transmission output | 4...20mA(power supply 24VDC) |
| Process Temperature |
-50~+350℃ |
| Process Pressure | -0.1~+16MPa |
| Process connection | flange(selectable) |
| resolution ratio | ±1mm |
| levels of protection | IP65,IP67,IP68(selectable) |
| Explosion-proof grade | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
