Product Details:
|
| Typical Application: | Liquid Measurement | Product Models: | NYCFQ- UL |
|---|---|---|---|
| Float Material: | F4、PP、304（selectable） | Probe Rod Length: | 200~6000mm |
| Ambient Temperature: | -40~80 ℃ | Process Temperature: | -40~+130 ℃ |
| Process Pressure: | -0.1~2.0M Pa | Medium Viscosity: | ≤0.05 Pa.S |
| High Light: | 304 Magnetic Level Gauge,Interference Resistant Magnetic Float Level Gauge,6000mm Magnetic Level Transmitter |
||
Low Maintenance Cost Magnetic Float Ball Level Gauge Interference Resistance
Working Principle of Low Maintenance Cost Magnetic Float Ball Level Gauge Interference Resistance

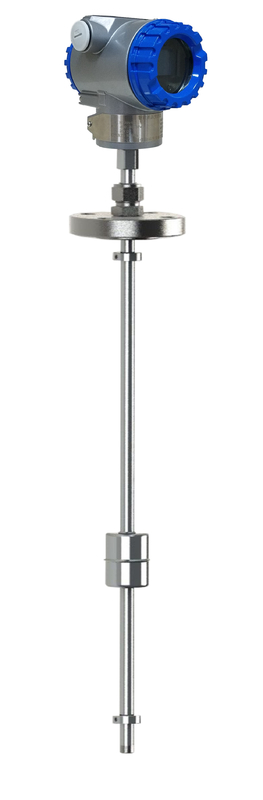

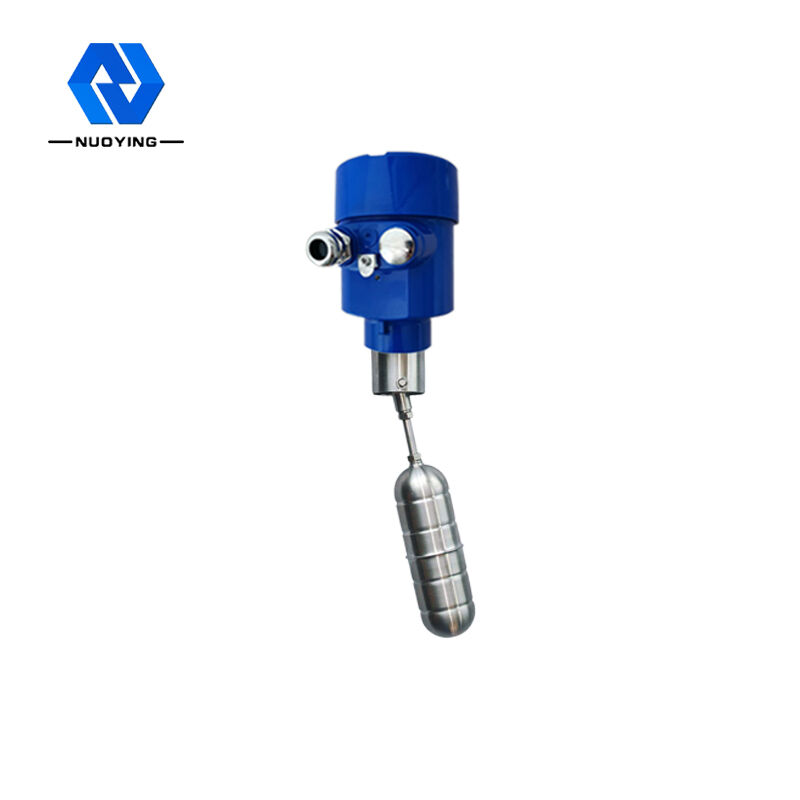

NYCFQ series maglev level meter is designed based on the principle of buoyancy and magnetic force. Magnetic float ball liquid level meter is installed in a closed non-magnetically conductive tube with one or more reed tubes, and then the tube through one or more hollow and internal annular magnet floating ball, annular magnetic float with liquid rise or fall will drive the float ball up and down together, so that the non-magnetically conductive pipe reed tube suction or disconnect action. Output resistance signal corresponding to the liquid level and converted into 4-20mA standard signal output, can also send contact on (off) conversion signal.
Design feature of Low Maintenance Cost Magnetic Float Ball Level Gauge Interference Resistance
◎ customized design, multi-point control, wide application range
◎ stable and reliable performance, strong lightning protection and interference resistance
◎ Multiple probe forms, suitable for various complex working conditions
◎ different floating ball materials can be selected according to different medium density
Technical parameters of Low Maintenance Cost Magnetic Float Ball Level Gauge Interference Resistance
| Typical application | Liquid level measurement, etc |
|
product model |
NYCFQ-UL,NYCFQ-UK |
| Float material | F4,PP,304,PTFE(selectable) |
| Probe rod length | 200~6000mm(can be customized) |
| ambient temperature | -40~80℃ |
| Process Temperature | -40~+130℃ |
| Process Pressure | -0.1~2.0Mpa |

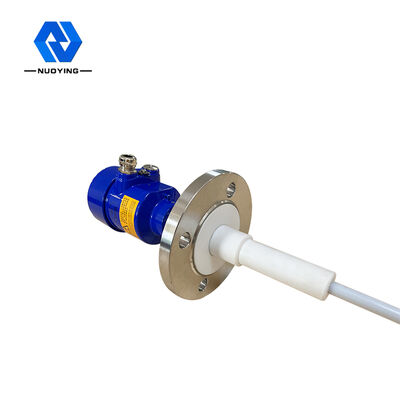

| Process connection | bracket,flange(selectable) |
| Medium viscosity | ≤0.05Pa.S |
| Medium density | 0.5~2.0g/cm3 |
| levels of protection | IP65,IP67,IP68(selectable) |
| Explosion-proof grade | Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
