Product Details:
|
| Typical Application: | Liquid Measure | Product Models: | NYCFQ-UK |
|---|---|---|---|
| Float Material: | F4、PP、304（optional） | Probe Rod Length: | 200~ 6000mm |
| Ambient Temperature: | -40~ 80℃ | Process Temperature: | -40~+ 130 ℃ |
| Process Pressure: | -0.1~2.0M P A | Medium Viscosity: | ≤0.05 Pa. S |
| High Light: | Float Ball Magnetic Level Transmitter,Liquid Magnetic Float Type Level Gauge |
||

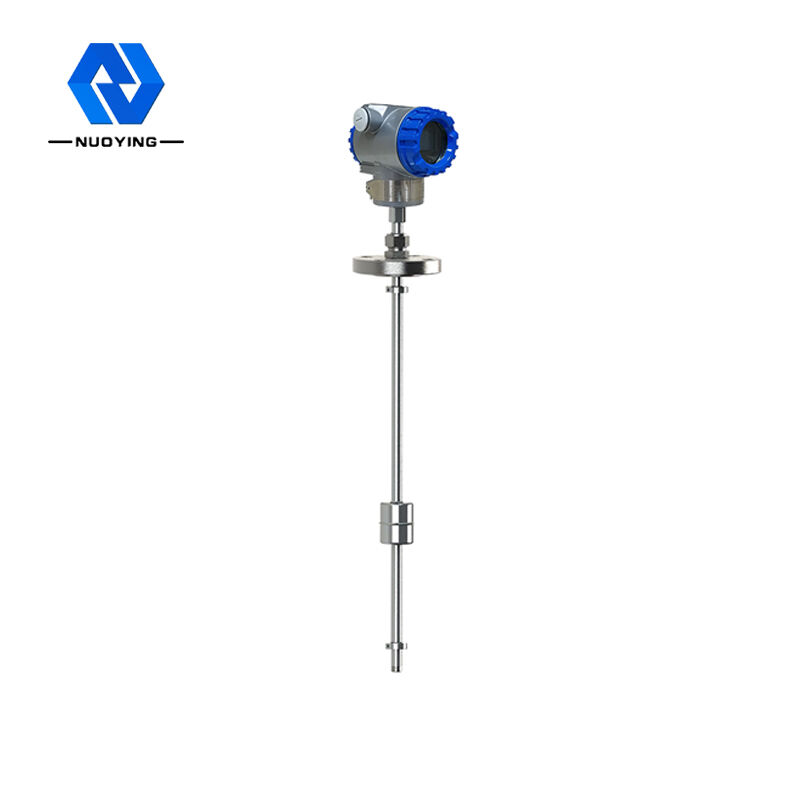

Multi-Point Control Magnetic Float Ball Level Gauge Wide Application Range
Working Principle of Multi-Point Control Magnetic Float Ball Level Gauge Wide Application Range
NYCFQ series magnetic float level gauge is designed based on the principle of buoyancy and magnetic force. The magnetic float level gauge is equipped with one or more reed switches in a closed non-magnetically conductive tube, and then the tube is passed through one or more hollow float balls with a ring magnet inside. The ring magnetic float rises with the liquid or The drop will drive the floating ball to move up and down together, so that the reed switch in the non-magnetic tube can be pulled in or disconnected, and the resistance signal corresponding to the liquid level is output and converted into a 4-20mA standard signal output. Sends a contact open (close) switching signal.
Design feature of Multi-Point Control Magnetic Float Ball Level Gauge Wide Application Range
◎ customized design, multi-point control, wide application range
◎ stable and reliable performance, strong lightning protection and interference resistance
◎ Multiple probe forms, suitable for various complex working conditions
◎ different floating ball materials can be selected according to different medium density
Technical parameters of Multi-Point Control Magnetic Float Ball Level Gauge Wide Application Range
| Typical application | Liquid level measurement, etc |
|
product model |
NYCFQ-UL,NYCFQ-UK |
| Float material | F4,PP,304,PTFE(selectable) |
| Probe rod length | 200~6000mm(can be customized) |
| ambient temperature | -40~80℃ |
| Process Temperature | -40~+130℃ |
| Process Pressure | -0.1~2.0Mpa |
| Process connection | bracket,flange(selectable) |
| Medium viscosity | ≤0.05Pa.S |
| Medium density | 0.5~2.0g/cm3 |
| levels of protection | IP65,IP67,IP68(selectable) |
| Explosion-proof grade | Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
