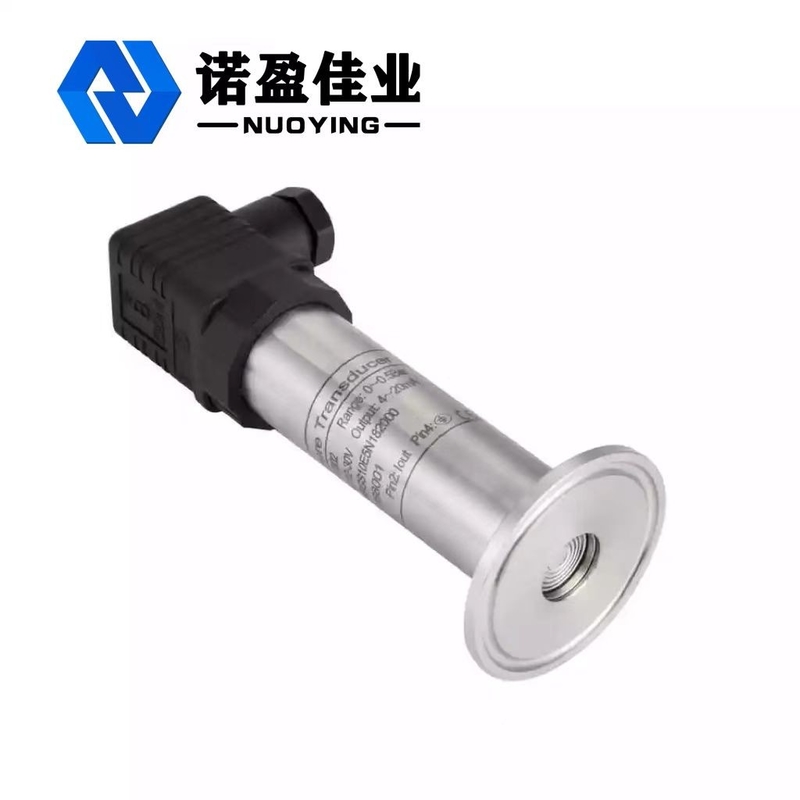

Sanitary Flat Membrane barometric pressure sensor

Name: Sanitary Flat Membrane barometric pressure sensor
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NP-93420-IB
Price: 1,075.00 USD
Availability: InStock

Brand Name:	NUOYINGJIAYE
Model Number:	NP-93420-IB
MOQ:	1 pcs
Price:	$450 to $1700 /pcs
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 pcs/ pre month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an, Shaanxi，China

Certification:

CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb

Application:

Liquid/Gas/Steam

Product No.:

NP-93420-IB/-IF/-IX/-IC/-IT/-IQ/-II/-III

Gauge Pressure:

0~5KPa~3.5MPa/0~0.1KPa~2MPa

Sealing Pressure:

0~7KPa~100MPa

Absolute Pressure:

0~20KPa~35MPa

Diaphragm Material:

316L(Optional)

Accuracy:

0.1/ 0.2 Grade

Power Supply:

24VDC

Output:

4... 20mA/HART/RS485/Modbus...

Display:

LCD(Optional)

Packaging Details:

Carton, 60cm×30cm×30cm

Supply Ability:

1000 pcs/ pre month

Product Description

3051 Pressure Transmitter Stability Differential with Hart Output for Liquid and Solid

NY3051 Pressure Transmitter

Product Parameters

Typical application	liquid, gas, steam
Measurement Range	upper limit URL
Measuring accuracy	0.05%-0.1%F.S
Power supply	24VDC(±30%)
Medium temperature	-25~+125℃
Process connection	Flange, thread (optional)
Housing material	Aluminum, stainless steel (optional)
Explosion-proof grade	Exia II CT6(optional)

Products Description

NY3051-4 Intellient Presssure Transmitter Working Principle

NP3051 series intelligent differential pressure / pressure transmitter has a variable capacitance sensing assembly called "δ" chamber see the figure below, the process pressure is transmitted through the "δ" chamber on both sides of the isolation diaphragm, filling fluid to the "δ " chamber to the center diaphragm. The center diaphragm is a tension elastic element, which produces a corresponding deformation displacement for the pressure difference between the two sides acting on it, and this displacement is transformed into the differential capacitance formed on the capacitor pole plate. The differential capacitance is converted into a standard output signal by an electronic circuit.

NY3051-4 Intellient Presssure Transmitter Design Feature

1. The powerful 24-bit CPU realizes high-precision and fast response LCD display.
2. The low temperature can reach -30 ℃.
3. Key operation can rewrite the range on site.
4. Powerful personal protection, transmitter security guard.
5. Damping time can be set to change between 0.1~16s.
6. Pressure value unit conversion between KPa, Pa, InH20 bar, etc. can be realized.
7. Failure and safety modes can be set by toggling the failure/safety switch.
8. With single point, multi-point and burst mode.
9. With power failure protection function, it can save its working data automatically when power failure.
10. Solid components, plug-in printed circuit board Small, light weight, strong and shock-resistant.

NY3051-4 Intellient Presssure Transmitter Application Field

NP3051 series intelligent differential pressure/pressure transmitter is suitable for measuring the liquid level of storage tank medium in industries such as dry petroleum, chemical industry, electric power, light industry and medicine.It is a widely used level gauge.

Product details

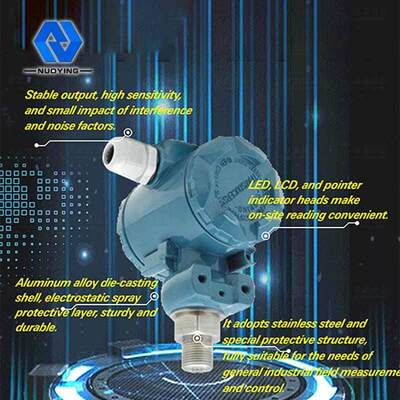

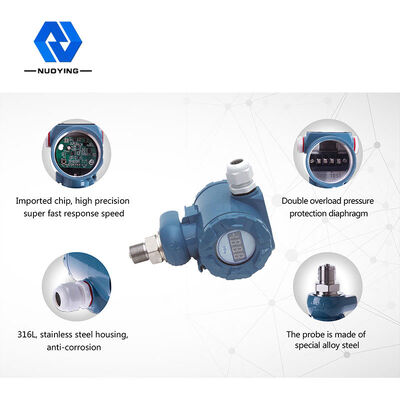

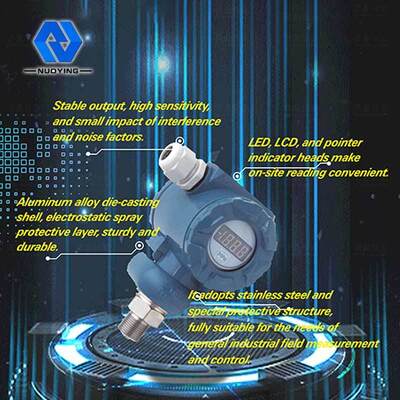

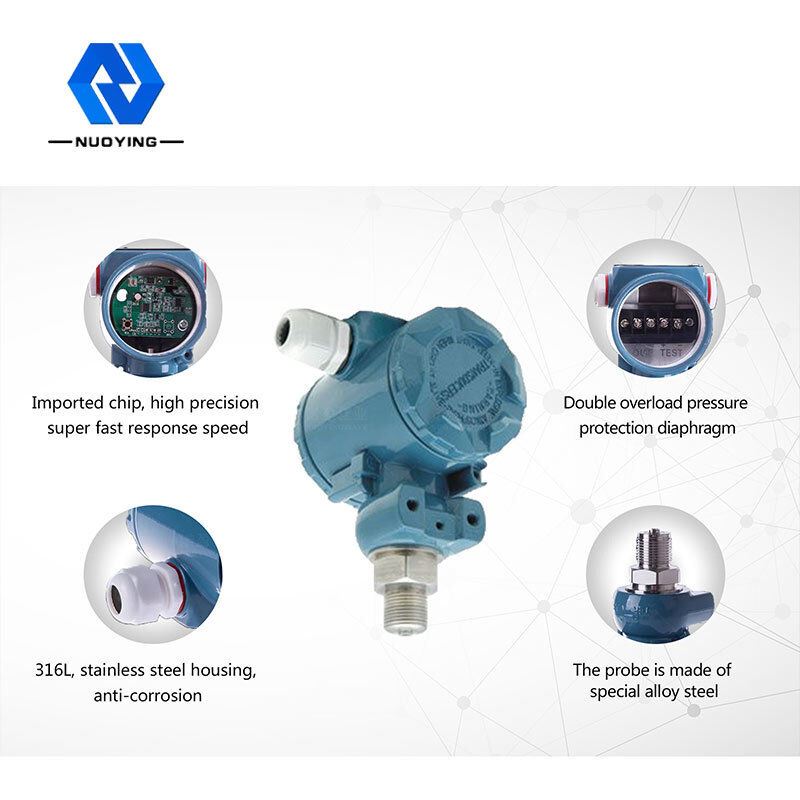

Product feature

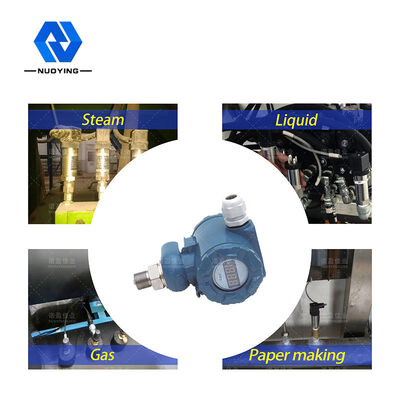

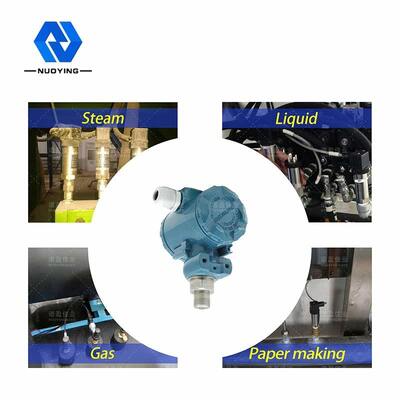

Various application
