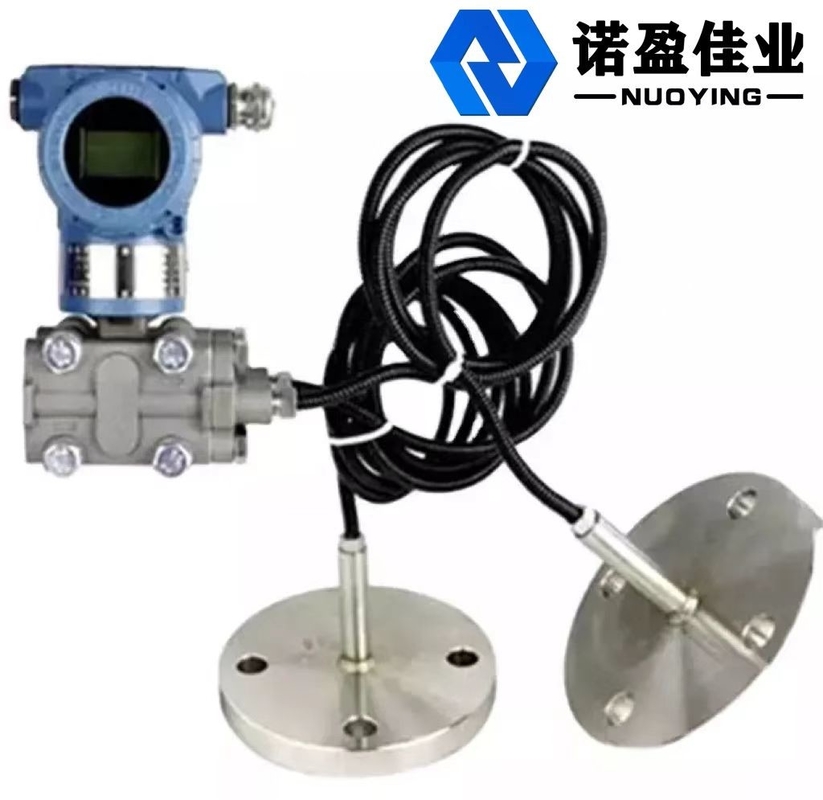

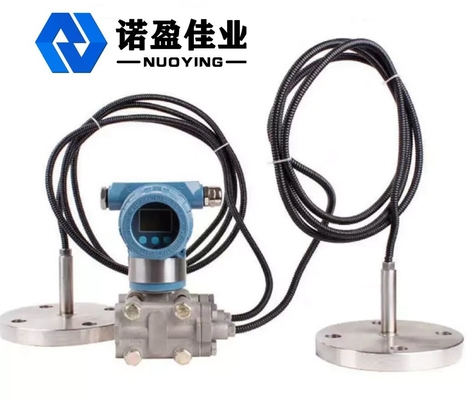

LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter

LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter
LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter

Large Image :  LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb
Model Number: NY3051
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $450 to $1700 /pcs
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/ pre month

LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter

Description
Application: Liquid/Gas/Steam Product No.: NY3051
Measuring Range: 0.006MPa,0.04MPa,0.25MPa,1.0MPa,2.5MPa Filling Liquid: Silicone Oil, Inert Oil (optional)
Diaphragm Material: 316L, Ha C Alloy (can Be Customized) Precision Grade: Class 0.025, Class 0.075, Class 0.1, Class 0.2
Power Supply: 24VDC

LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter



Description LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter



capacitance differential pressure transmitter can measuring liquids’ level and density of kinds of containeraccurately. Transmitter is mounted to the container with pipe flange. Be propitious to measuring medium of high temperature,high viscosity and easy to subside or strong corrosive . Diaphragm subassembly have plane and plug-in types.flange size: 3inch and 4inch; pressure grade: 50Ib and 300Ib. The membrane can select 316 stainless steel, Hastelloy or tantalum according to measure medium

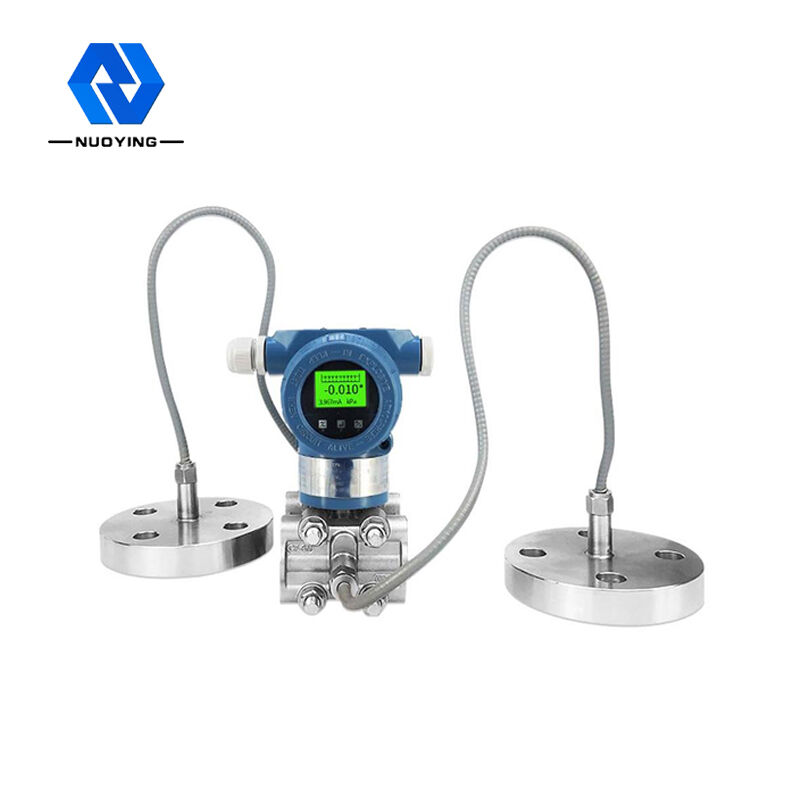

Detailed Images LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter



LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter





Specification LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter







Range code

Range



Measuring range

  Min. Max.
4 0.374KPa 37.4KPa -37.4~37.4KPa
5 1.868KPa 186.8KPa -186.8~186.8KPa
6 6.9KPa 690KPa -690~690KPa







Output

Analog output: two –wire 4-20mADC
  Digital output: two –wire 4-20mADC and superimposing variable digital signal accord with HART
Power supply supply voltage 12.5-45VDC
Limit load

Max load resistor Rmax in loop decided by the supply voltage, see the below drawing. HART

PROTOCOL require the load resistor not less than 250Ω,not more than 600Ω

Communication distance Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max.
Display 4 digital display,5 digit LCD display, pointer type.
Explosion-proof ExiaIICT5;explosion suppression type
Zero offset Can positive transfer or negative transfer, but can not overstep the utmost value
Temperature ambient temperature -40-85(When choose LCD : -20-70)
Medium temperature -40~104

Static pressure and single side

overpressur

3.45KPa(absolute pressure)~31.2MPa(gauge pressure)
Relative humidity 5~98%RH
Run-up time less than 5 sec.
Capability change Less than 0.16cm3
Damp adjust 0.20~25 second
Malfunction alarming If occur malfunction, automatism diagnose function will output 3.9 or 21.0mA
Configuration protection To avoid the datas are modified random, can utilize software or protect switch lock the record data







Features LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter

Diaphragm materials optional different acid material

Super performance, use to measure pressure, differential pressure and level.. Accuracy: ±0.075%~±0.1%F.S/±0.2%F.S

Stability: 0.2%

Standard 4~20mA,RS-485 communication interface Support upgrade of basic scene control technique

Little temperature effect Little static effect

Overload can reach 2 times



Applications LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter



Compatible with 316LSS,noncorrosive liquids.

Shipping and aviation industry.

Hydraulic pressure and pneumatic control system

Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.





Related products

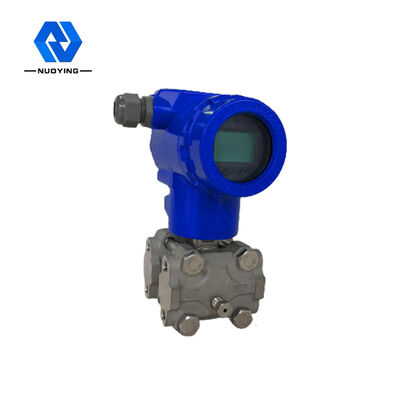

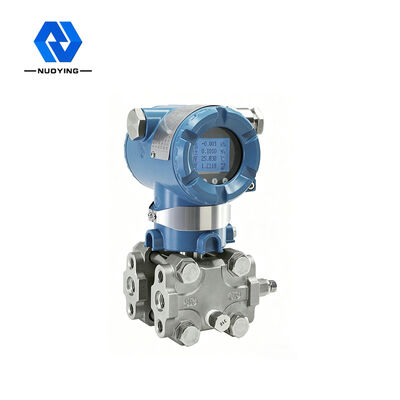

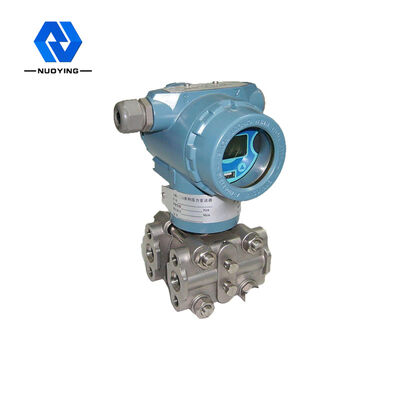

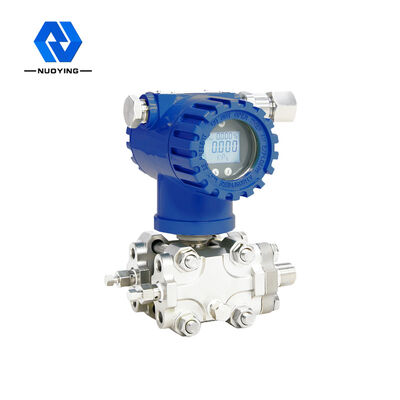

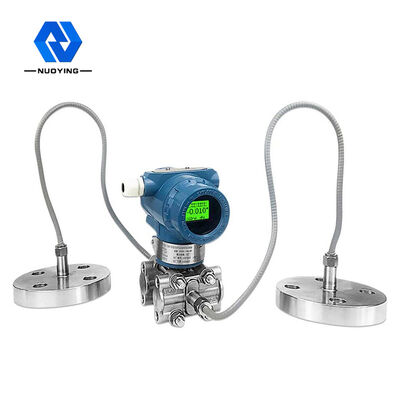

LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter LCD Display Double Flange Differential Pressure Transmitter Flange Liquid Level Transmitter
