Product Details:
|
| Application: | Liquid/Gas/Steam | Product No.: | NYPS-93420-IB/-IF/-IX/-IC/-IT/-IQ/-II/-III |
|---|---|---|---|
| Gauge Pressure: | 0~5KPa~3.5MPa/0~0.1KPa~2MPa | Sealing Pressure: | 0~7KPa~100MPa |
| Absolute Pressure: | 0~20KPa~35MPa | Diaphragm Material: | 316L(Optional) |
| Accuracy: | 0.1/ 0.2 Grade | Power Supply: | 24VDC |
| Output: | 4... 20mA/HART/RS485/Modbus... | Display: | LCD(Optional) |
wholesale stainless steel oil air Manometer Pressure Meter gauge
Description wholesale oil air Manometer Pressure Meter gauge
Glycerine filled stainless steel pressure gauge with direct contact, fittings and pressure sensitive element of SUS316 material, has strong anti-corrosion properties of the measured medium, at the same time, housing, machines and other core components are all 1Crl8Ni9Ti, OCrl8Ni 12M02Ti material. Hermetically structure, the outer surface of the entire spray PTFE Teflon coating, has the best corrosion resistance to environmental capacity, so that the product is suitable for corrosive medium stainless steel element detection and harsh external corrosive environments.

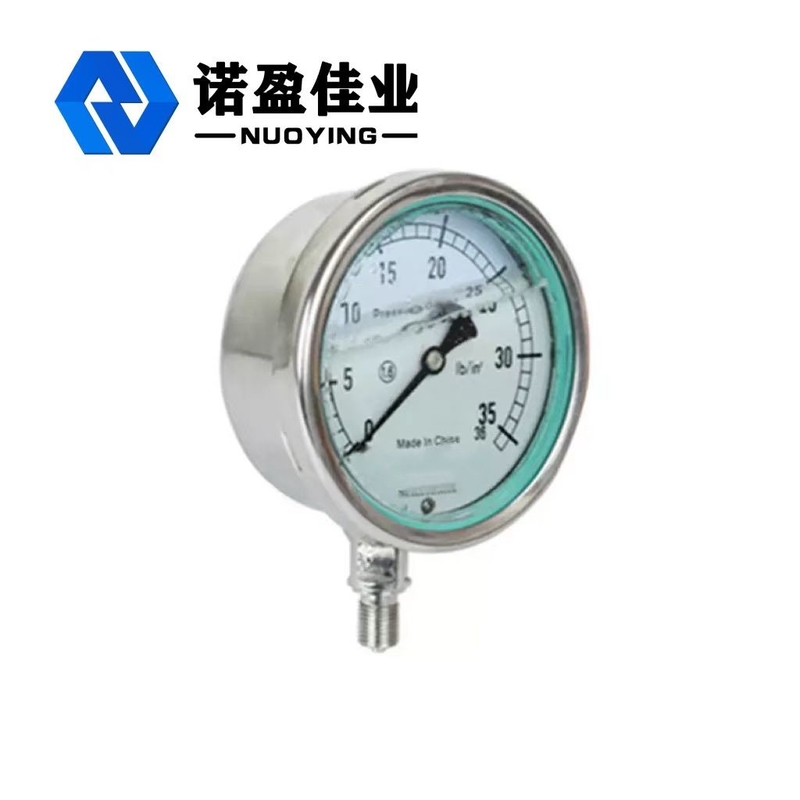

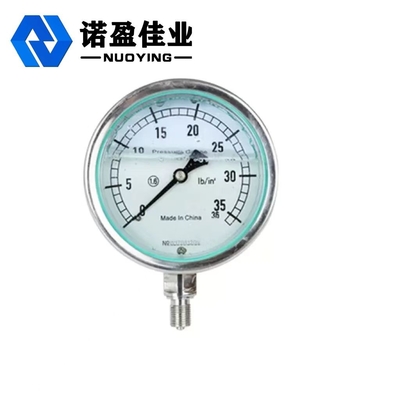

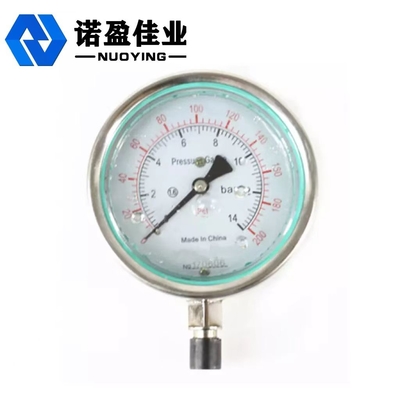

Detailed Images wholesale oil air Manometer Pressure Meter
Specification oil air Manometer Pressure Meter gauge
| 1.Accuracy class: 1.6, 2.5,1.0(custom) 2.Measuring range: (Mpa) (custom) 0-0.16 0-0.25 0-0.1 0-0.4 0-0.6 0-1.6 0-2.5 0-1 0-40-60-100-16 0-250-400-60 -0.1-0 -0.1-0.06 -0.1-0.15 -0.1-0.3 -0.1-0.5 -0.1-0.9 -0.1-1.5 -0.1-2.4 3. Parts material: SUS316, SUS316L, 1Crl8Ni9Ti(custom) 4. The instrument nominal diameter: Φ60mm Φ100mm Φ150mm( custom) 5. Connector thread size: M20X1.5 (G3 / 8 ", Gl / 4", NPTl / 2 "or custom) 6.Working conditions: (1) Ambient temperature: -40-70 ℃ (2) Working pressure: Static load: with a scale value 3/4 alternating load: The scale value short 2/3 pressure: the scale value |
Applications wholesale oil air Manometer Pressure Meter gauge
Industrial, petroleum, chemical, heating systems, piping, instrumentation,pneumatic line and auxiliary equipment.
