Product Details:
|
| Application: | Liquid/Gas/Steam | Product No.: | NYPS-93420-IB/-IF/-IX/-IC/-IT/-IQ/-II/-III |
|---|---|---|---|
| Gauge Pressure: | 0~5KPa~3.5MPa/0~0.1KPa~2MPa | Sealing Pressure: | 0~7KPa~100MPa |
| Absolute Pressure: | 0~20KPa~35MPa | Diaphragm Material: | 316L(Optional) |
| Accuracy: | 0.1/ 0.2 Grade | Power Supply: | 24VDC |
| Output: | 4... 20mA/HART/RS485/Modbus... | Display: | LCD(Optional) |

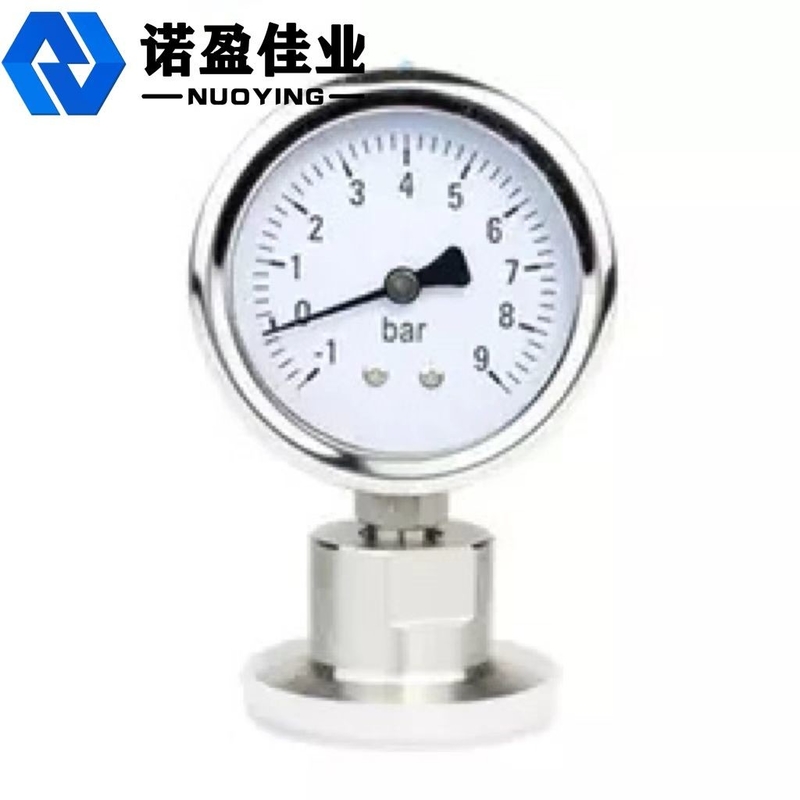

Hygienic Sanitary pressure gauge with varivent diaphragm
Description diaphragm ss steam boiler pressure gauge
Hygienic diaphragm pressure gauge is a general-purpose pressure gauge and diaphragm isolator to form a systematic diaphragm pressure gauge. With the installation of the demolition of the site quick and easy, easy to pollution, easy to clean, safe and reliable security and so on. To meet the quality requirements of pharmaceutical production (GMP) requirements. In the pharmaceutical, food, drinking water, water treatment and other industries have instrumentation hygienic requirements of the process has been widely used.

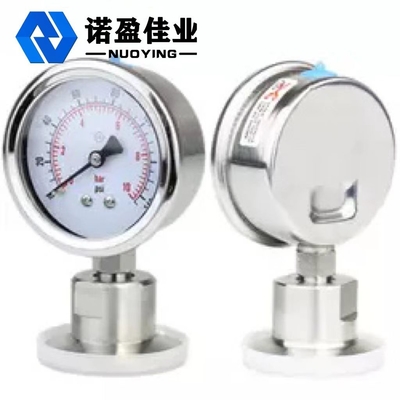

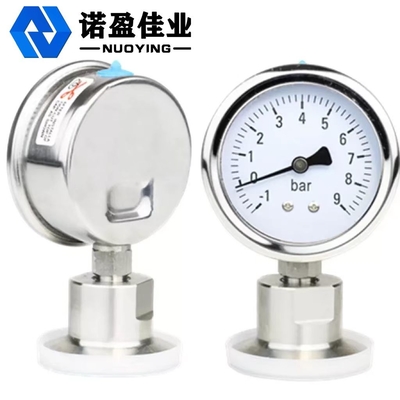

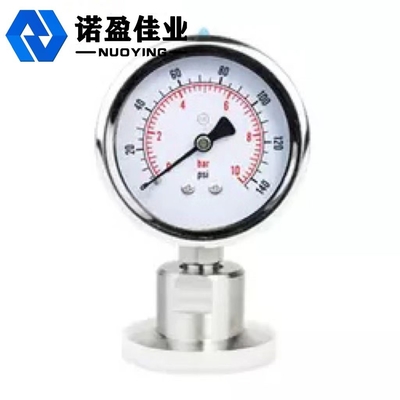

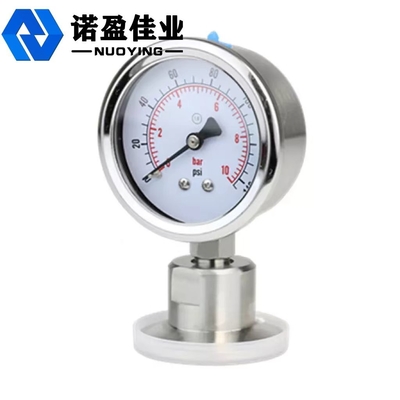

Detailed Images diaphragm ss steam boiler pressure gauge
Specification SS Hygienic diaphragm pressure gauge
1. Diaphragm corrosion resistance
The corrosion resistance of the diaphragm gauge can be ensured by suitable selection of the diaphragm, flange and seal material in contact with the measuring medium.
Diaphragm material: 316,316L
Flange material: 316,316L
Sealing material: silicone rubber, PTFE
2. Sealing liquid selection
In order to ensure the reliability and safety of the hygienic diaphragm table, choose the suitable sealing liquid according to different purposes.
| Sealing liquid | Pressure department temperature range ℃ | proportion | Body expansion |
| Glycerol solution | -5~100 | 1.27 | 0.61×10-3 |
| Propylene glycol | -30~160 | 1.04 | 0.70×10-3 |
| Vegetable oil | -5~100 | 1.93 | 1.03×10-3 |
3. Note: 1. Users can also use other general-purpose pressure gauge, when ordering you can consult with us.
Features SS Hygienic diaphragm pressure gauge
1.measuring strong corrosion, high temperature, high viscosity
2. easy to crystallize
3. easy to solidify, there are solid floating media pressure and the need to avoid the measurement of media directly into the general pressure gauge and prevent the accumulation of sediment and easy to clean the occasion.
Applications SS Hygienic diaphragm pressure gauge
In the pharmaceutical, food, drinking water, water treatment and other industries have instrumentation hygienic requirements of the process has been widely used.

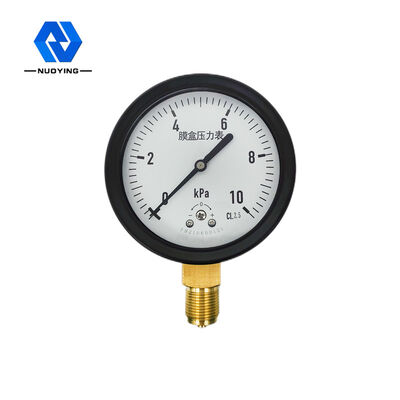

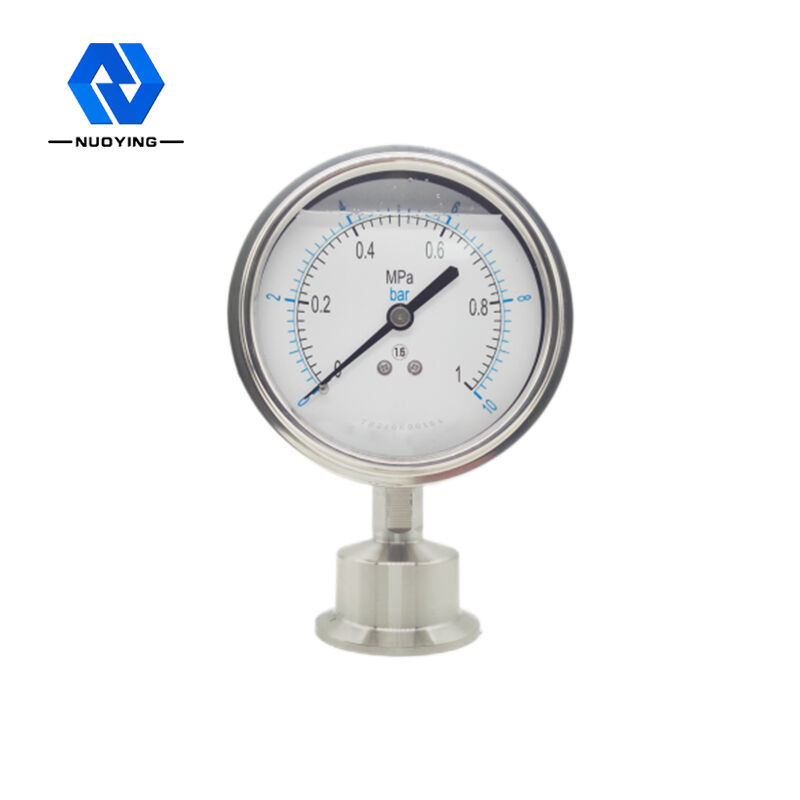

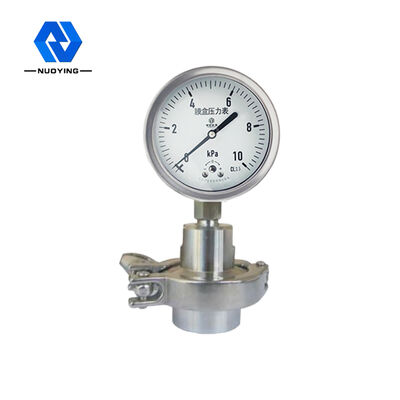

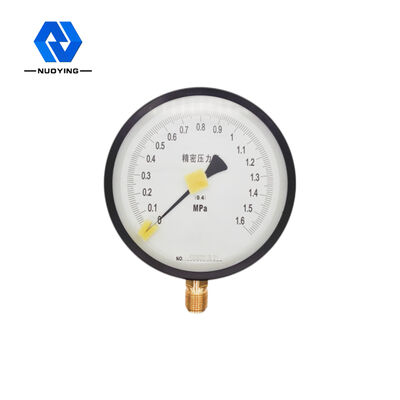

Related products SS Hygienic diaphragm pressure gauge
