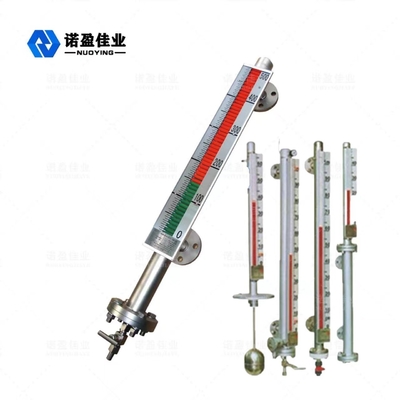

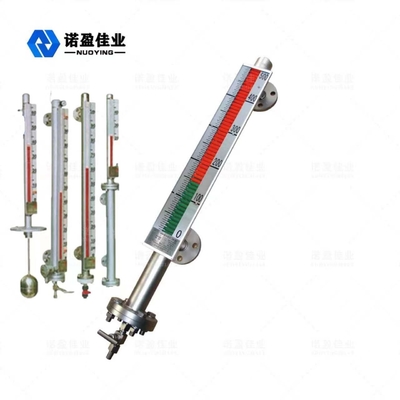

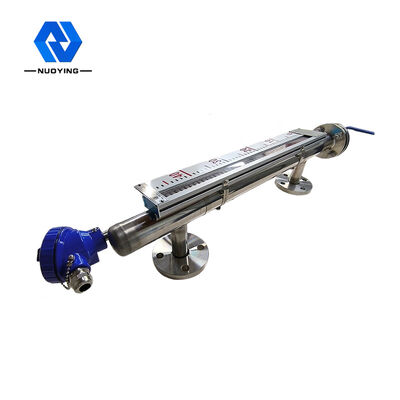

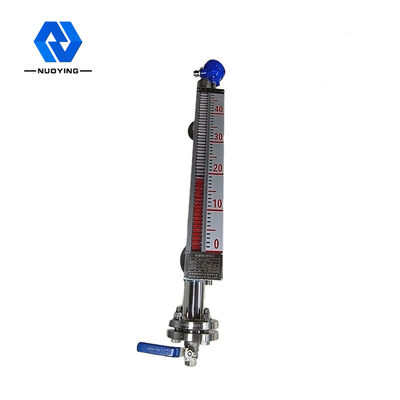

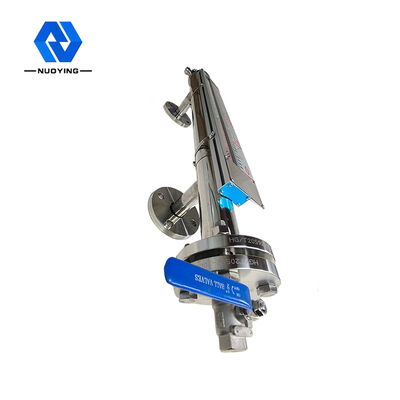

NYUHZ High sealing leak proof magnetic flap level meter

NYUHZ High sealing leak proof magnetic flap level meter
NYUHZ High sealing leak proof magnetic flap level meter NYUHZ High sealing leak proof magnetic flap level meter NYUHZ High sealing leak proof magnetic flap level meter

Large Image :  NYUHZ High sealing leak proof magnetic flap level meter

Product Details:
Place of Origin: Xi'an Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYUHZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $116.739 to $388.575/pcs
Packaging Details: Carton,Export Standard Packaging
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/per month

NYUHZ High sealing leak proof magnetic flap level meter

Description
Product Models: NYUHZ Typical Application: Liquid Level Measurement
Process Pressureterface: -0.1~+16MPa Power Supply: 24VAC,1A
Temperature Accuracy: -50~+350℃ Measurement Accuracy: ± 3mm, ± 5mm, ± 10mm, ± 20mm (optional)
Medium Density: ≧0.425g/cm3 Measuring Range: 0~6m

NYUHZ High Sealing Leak Proof Magnetic Flap Level Meter





NYUHZ Magnetic Flap Level Meter Working Principle

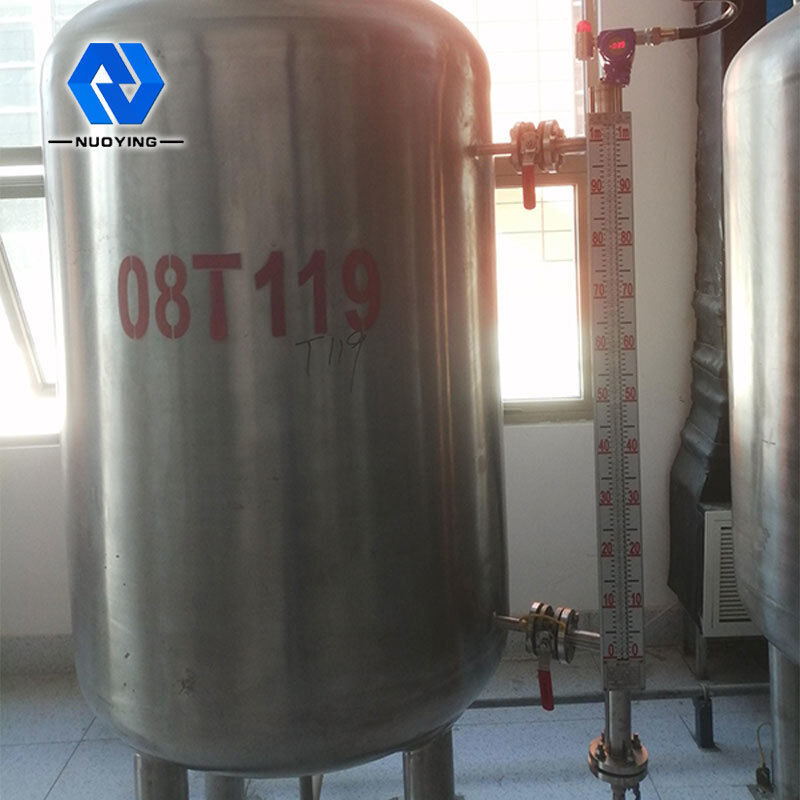

Magnetic flap level meter can be used for medium level detection of various towers, tanks, tanks, spherical vessels, boilers and other equipment. The Magnetic flap level meter can be highly sealed, leak proof and suitable for high temperature, high pressure and corrosion resistant occasions.

The Magnetic flap level meter has a cavity (called the measuring pipe or the main pipe) to hold the float ball, and the cavity forms a connector with the container through flange or other suitable connection methods. According to the principle of the connector, with the change of the liquid level in the container, the liquid level in the cavity is the same height as the liquid level in the container, so it drives the floating ball in the cavity to move up and down, and rise and fall with the rise and fall of the liquid level in the container. At this time, we can't see the liquid level, so a magnetic column display is installed outside the chamber.

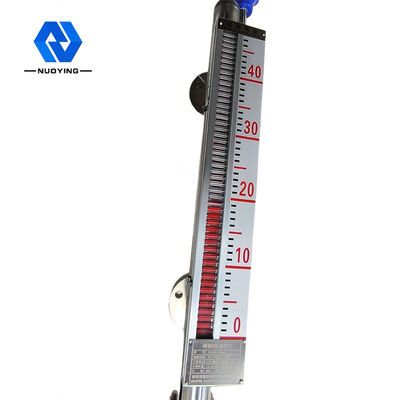

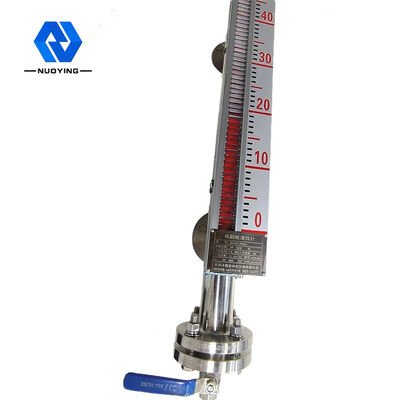

A permanent magnetic steel is installed at the junction of the submerged liquid and the floating part of the float. When the liquid level in the measured container rises and falls, the magnetic float in the body tube of the level meter also rises and falls. The permanent magnetic steel in the float is transferred to the magnetic column indicator through magnetic coupling, driving the red and white column to turn 180 °. When the liquid level rises, the column turns from white to red, and when the liquid level drops, the column turns from red to white, The red white junction of the indicator is the actual height of the liquid level inside the container, so as to achieve clear indication of the liquid level.



NYUHZ Magnetic Flap Level Meter Technical Parameters



Typical Applications Liquid level measurement
Product Model NYUHZ
Installation Type side mounted, top mounted
Main Body Material 304,316
Measuring Range 0~6m

Measurement Accuracy



± 3mm, ± 5mm, ± 10mm, ± 20mm (optional)

Medium Density ≧0.425g/cm3
Density Difference ≧0.1g/cm3
Medium Viscosity ≦0.4Pa.S
Control Output 220VAC,1A
Transmission Output 4... 20mA (power supply 24VDC)
Process Temperature -50~+350℃
Process Pressure -0.1~+16MPa
Process Connection flange (optional)
Resolution ±1mm



Protection Grade



IP65, IP67, IP68 (optional)



Explosion Proof Grade



Exia Ⅱ CT6 Ga, Exd Ⅱ CT6 Gb (see certificate for details)





Note: The products can be customized and designed according to the specific requirements of users!



NYUHZ Magnetic Flap Level Meter Design Features



◎ Simple structure, solid and reliable, stable operation.

◎ The scale displayed on site is clear and readable.

◎ It can measure and indicate the liquid level of corrosive, flammable, toxic, high-temperature and agitated liquid.

◎ Multiple installation forms and connection forms can be selected.

◎ The design pressure range is from full vacuum to 10MPa.

◎ Design temperature range - 160~+450 ℃.

◎ Professional design can be carried out for special pressure and temperature.
