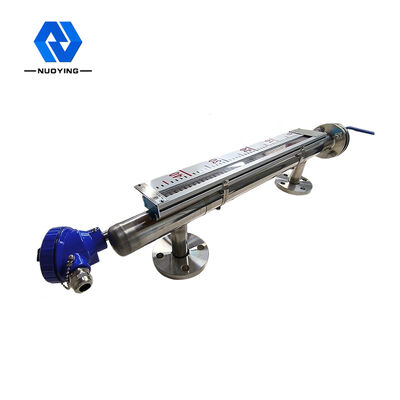

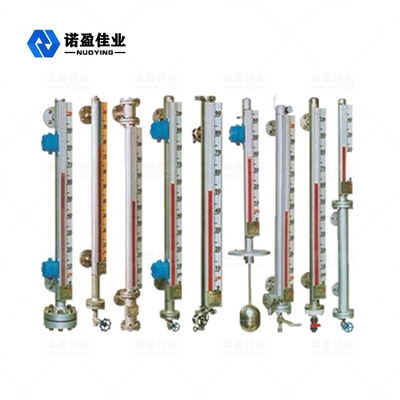

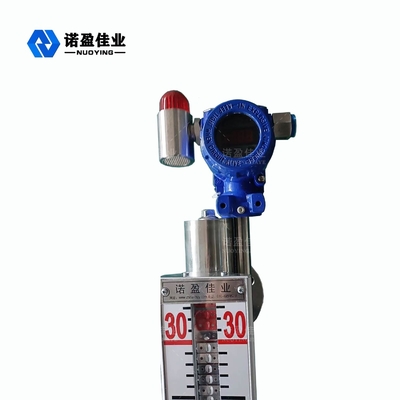

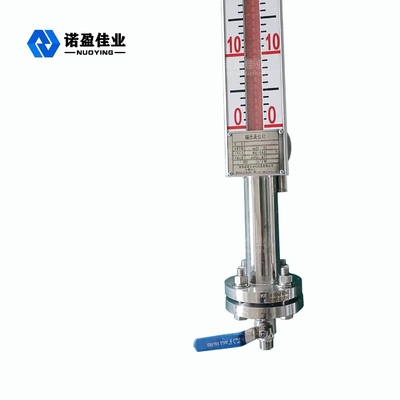

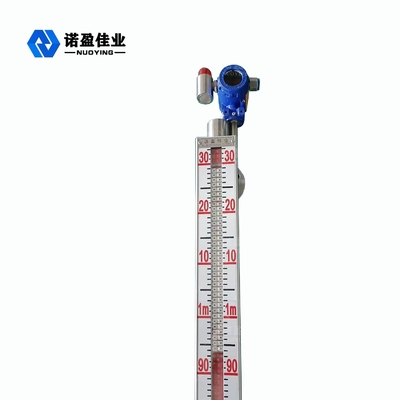

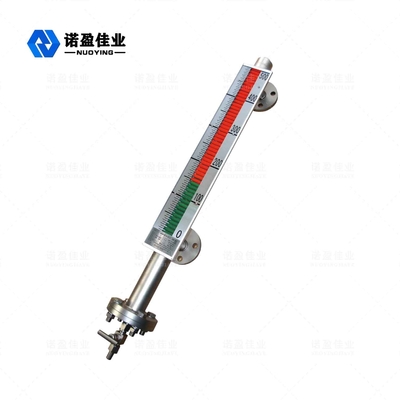

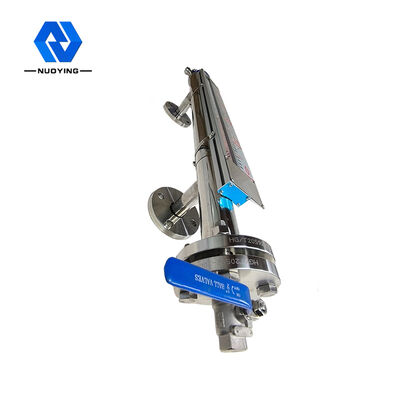

High pressure than 4.0Mpa and less than 10Mpa type Magnetic flap liquid level gauge

High pressure than 4.0Mpa and less than 10Mpa type Magnetic flap liquid level gauge

Brand Name:	NUOYING
Model Number:	NYUHZ-G
MOQ:	1pcs
Price:	$125 to $285/pcs
Payment Terms:	T/T
Supply Ability:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,Shaanxi,China

Certification:

CE, SIL, ATEX

Grade:

Industrial

Warranty:

12 Months

Customized Support:

OEM, ODM

Brand Name:

NUOYING

Applications:

Liquids, Powders, Solid Particles, Corrosive Media

Process Connection:

Flange Connection

Power Supply:

24VDC(two Line, Four Line), 220VAC

Measuring Medium Density:

0.5～1.8 G/cm3

Process Temperature:

200℃

Process Pressure:

4.0~10MPa

Signal Output:

4...20mA/HART/RS485/Modbus...

Max. Centre To Centre Distance:

0～6m

Packaging Details:

40*30*30cm

Supply Ability:

1000pcs per month

Product Description

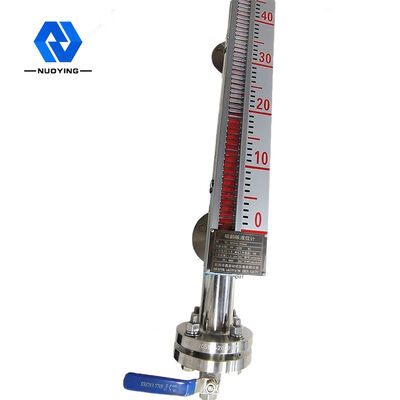

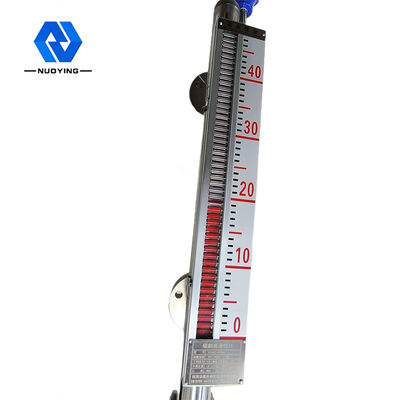

Working Principle of 6m Flange Magnetic Flap Level Gauge For Liquid Measurement

Magnetic flap level gauge is developed based on the principle of buoyancy (Archimedes' law) combined with magnetic coupling. When the liquid level in the measured container rises and falls, the float in the main pipe of the level gauge also rises and falls, and the float The permanent magnetic steel inside is transmitted to the on-site indicator (ruler) through magnetic coupling, which drives the yellow, black (or red and white) turning column to rotate. When the liquid level rises, the turning column turns from white to red. When the liquid level drops, the turning column turns from red to white. The junction of red and white of the indicator is the actual height of the medium level gauge in the container.

Design feature of 6m Flange Magnetic Flap Level Gauge For Liquid Measurement

◎ simple structure, solid and reliable, stable operation

◎ on site display scale is clear, striking and easy to read

◎ it can measure and indicate the liquid level with corrosive, flammable, toxic, high-temperature and agitated contaminated liquid

◎ multiple installation forms and connection forms can be selected

◎ design pressure range: full vacuum to 10MPa

◎ design temperature range: - 160 ~ + 450 ℃

◎ professional design for special pressure and temperature

Technical parameters of 6m Flange Magnetic Flap Level Gauge For Liquid Measurement

Typical application	Liquid level measurement
product model	NYUHZ
Installation form	Side mounted, top mounted
Body Material	304,316
measuring range	0~6m
Measurement precision	±3mm,±5mm, ±10mm, ±20mm (selectable)
Medium density	≥0.425g/cm³
Density difference	≥0.1g/cm³
Medium viscosity	≤0.4Pa.S
Control output	220VAC,1A
Transmission output	4...20mA(power supply 24VDC)
Process Temperature	-50~+350℃
Process Pressure	-0.1~+16MPa
Process connection	flange(selectable)
resolution ratio	±1mm
levels of protection	IP65,IP67,IP68(selectable)
Explosion-proof grade	Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details)

※Note:The product can be customized according to the specific requirements of users.
