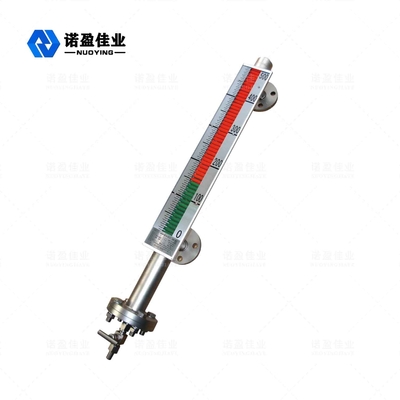

Magnetic Level Transmitter With guide tube for liquids that tend to foam

Magnetic Level Transmitter With guide tube for liquids that tend to foam

Brand Name:	NUOYING
Model Number:	NYUHZ-P
MOQ:	1pcs
Price:	$125 to $285/pcs
Payment Terms:	T/T
Supply Ability:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,Shaanxi,China

Certification:

CE, SIL, ATEX

Grade:

Industrial

Warranty:

12 Months

Customized Support:

OEM, ODM

Brand Name:

NUOYING

Applications:

Liquids, Powders, Solid Particles, Corrosive Media

Process Connection:

Flange Connection

Power Supply:

24VDC(two Line, Four Line), 220VAC

Measuring Medium Density:

0.5～1.8 G/cm3

Process Temperature:

200℃

Display Panel Installation Default Orientation:

Facing Away From Flange

Signal Output:

4...20mA/HART/RS485/Modbus...

Max. Centre To Centre Distance:

0～6m

Packaging Details:

40*30*30cm

Supply Ability:

1000pcs per month

Product Description

Factory NYUHZ Magnetic Flap Level Gauge Working Principle

NYUHZ Flange Flap Magnetic Level Transmitter has two main parts, a cavity with a floating ball called measuring tube or main tube, and a indicating panel. The cavity is connected with medium tank through flanges or other suitable connection types. So the floating ball indicating medium level in the measuring tube will go up and down along with the level in the tank. The floating ball has a permanent magnet which will attract the corresponding magnetic colored flaps to turn over. Then the actual value of medium level will be shown clearly in the indicating panel, people can read easily.

Factory NYUHZ Magnetic Flap Level Gauge Design Features

◎ Simple structure, solid and reliable, stable operation
◎ The scene display scale is clear, eye-catching easy to read
◎ Liquid levels that can be measured and indicated to be corrosive, flammable, toxic, high temperature, agitated and contaminated

Factory NYUHZ Magnetic Flap Level Gauge Technical Parameters

Typical application	Liquid level measurement
Measurement range	0~6m
Measuring accuracy	±3mm, ±5mm (optional)
Medium density	≥0.425g/cm³
Density difference	≥0.1 g/cm³
Medium viscosity	≤0.4Pa.S
Control output	220VAC, 1A
Transmission output	4~20mA (power supply 24VDC)
Process temperature	-50~+350 °C
Process pressure	-0.1~+16MPa
Process connection	Flange (optional)
Protection grade	IP67 (optional)
Explosion-proof grade:	Exia II CT6 Ga, Exd II CT6 Gb (details in certificate)

Note: Products can be customized according to the specific requirements of users.

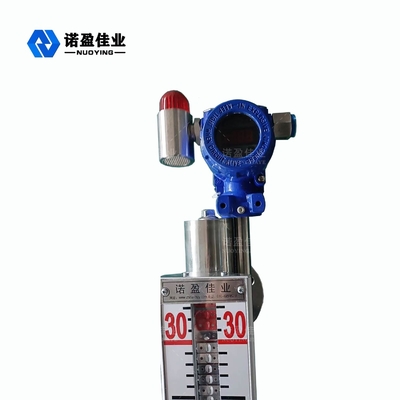

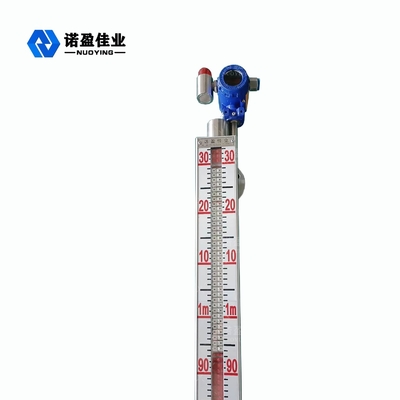

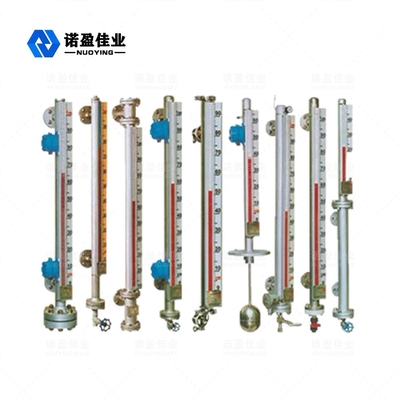

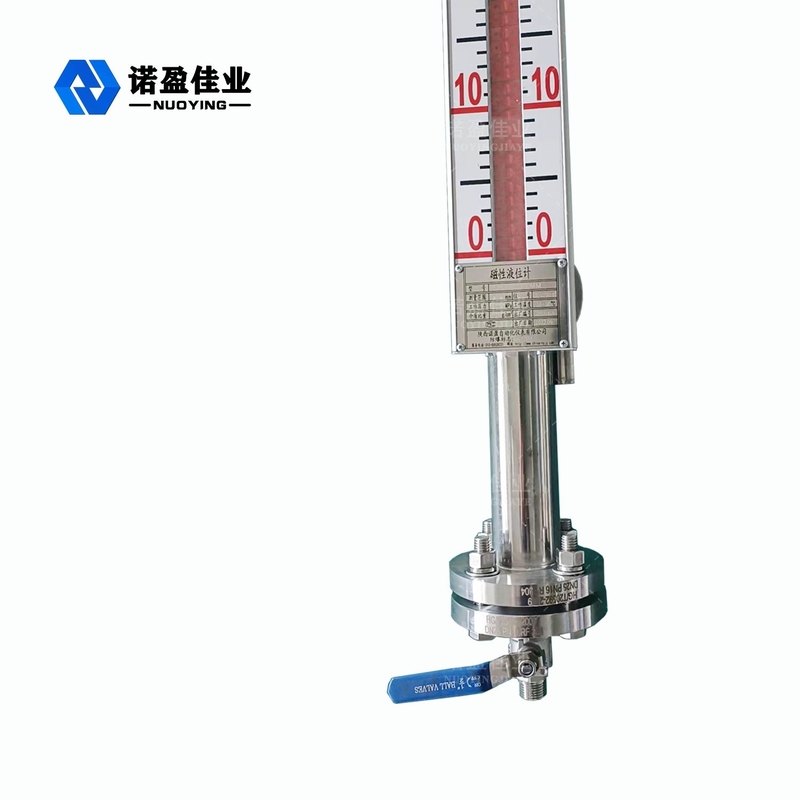

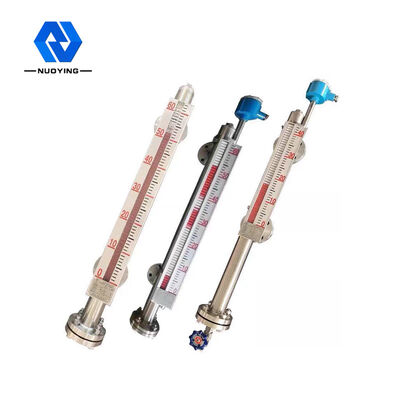

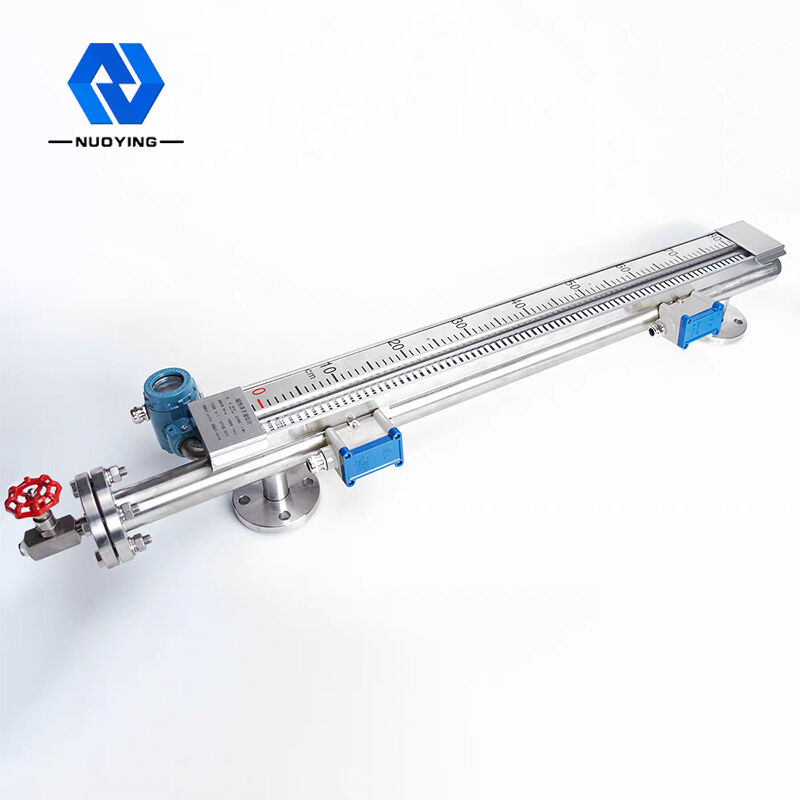

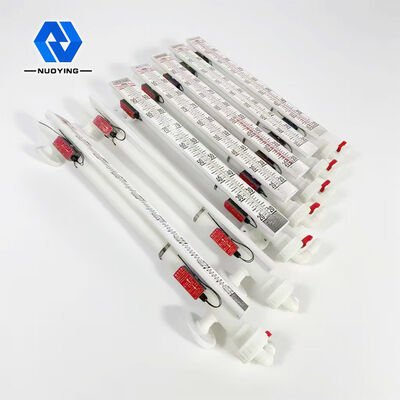

Factory NYUHZ Magnetic Flap Level Gauge Related Pictures

Magnetic Level Transmitter With guide tube for liquids that tend to foam 0

Magnetic Level Transmitter With guide tube for liquids that tend to foam 1
