| Brand Name: | NUOYING |
| Model Number: | NYUHZ |
| MOQ: | 1 pc |
| Price: | $100~$150/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYUHZ Flange Flap Magnetic Level Transmitter for Liquid Level Measurement with 6m Range Factory Direct Sale
NYUHZ Flange Flap Magnetic Level Transmitter Working Principle
NYUHZ Flange Flap Magnetic Level Transmitter has two main parts, a cavity with a floating ball called measuring tube or main tube, and a indicating panel. The cavity is connected with medium tank through flanges or other suitable connection types. So the floating ball indicating medium level in the measuring tube will go up and down along with the level in the tank. The floating ball has a permanent magnet which will attract the corresponding magnetic colored flaps to turn over. Then the actual value of medium level will be shown clearly in the indicating panel, people can read easily.
NYUHZ Flange Flap Magnetic Level Transmitter Design Features
◎ Simple structure, solid and reliable, stable operation
◎ The scene display scale is clear, eye-catching easy to read
◎ Liquid levels that can be measured and indicated to be corrosive, flammable, toxic, high temperature, agitated and contaminated
◎ Multiple installation forms, multiple connection forms can be optional
◎ Design pressure range from full vacuum to 10 MPa
◎ Design temperature range -50~+350℃
◎ Professional design for special pressure and temperature
NYUHZ Flange Flap Magnetic Level Transmitter Application Fields
The magnetic flap level gauge can be used for medium level detection of various towers, tanks, groove, spherical containers and boilers. Magnetic flap level gauge can achieve high sealing, anti-leakage and suitable for high temperature, high pressure, corrosion-resistant occasions.
NYUHZ Flange Flap Magnetic Level Transmitter Technical Parameters
| Typical application | Liquid level measurement |
| Measurement range | 0~6m |
| Measuring accuracy | ±3mm, ±5mm (optional) |
| Medium density | ≥0.425g/cm³ |
| Density difference | ≥0.1 g/cm³ |
| Medium viscosity | ≤0.4Pa.S |
| Control output | 220VAC, 1A |
| Transmission output | 4~20mA (power supply 24VDC) |
| Process temperature | -50~+350 °C |
| Process pressure | -0.1~+16MPa |
| Process connection | Flange (optional) |
| Protection grade | IP67 (optional) |
| Explosion-proof grade: | Exia II CT6 Ga, Exd II CT6 Gb (details in certificate) |
Note: Products can be customized according to the specific requirements of users.

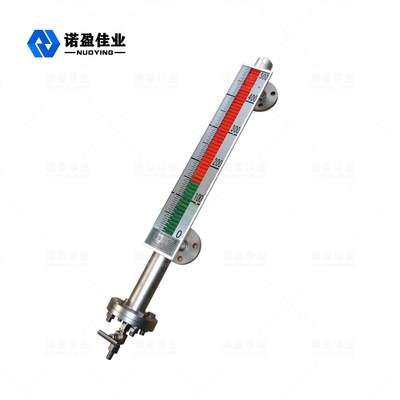

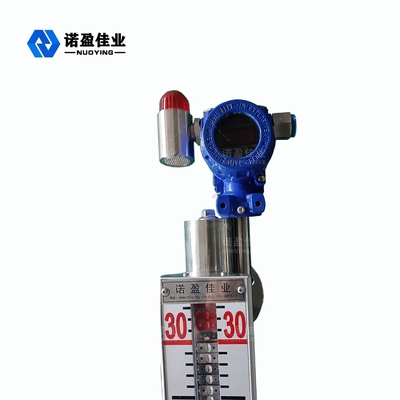

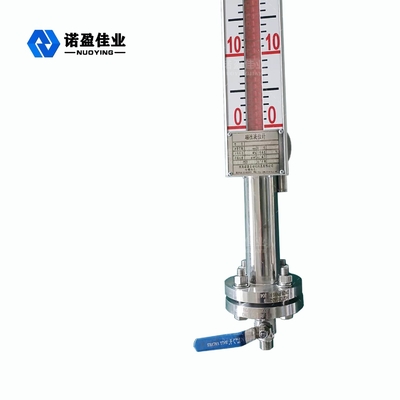

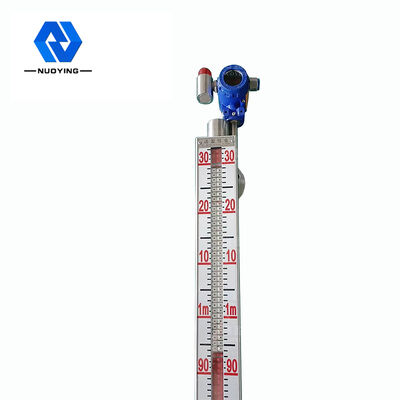

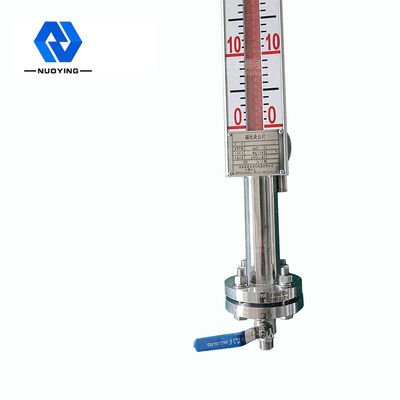

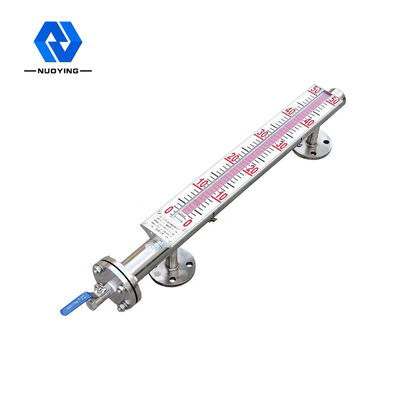

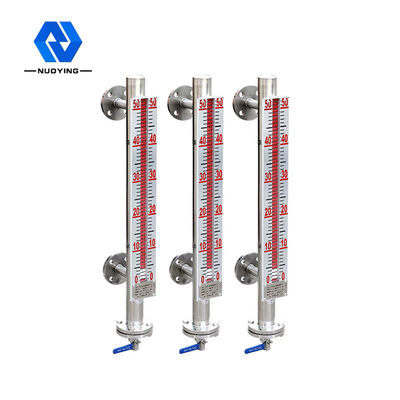

NYUHZ Flange Flap Magnetic Level Transmitter Related Pictures
