| Brand Name: | NUOYING |
| Model Number: | NYUHZ |
| MOQ: | 1 pc |
| Price: | $103~$156/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
Magnetic Flap Level Transmitter Side Mount/Top Mount Indicator Magnetic Float Level Gauge Water Tank Level Gauge
Magnetic Flap Level Transmitter Design Features
◎ Simple structure, solid and reliable, stable operation
◎ The scene display scale is clear, eye-catching easy to read
◎ Liquid levels that can be measured and indicated to be corrosive, flammable, toxic, high temperature, agitated and contaminated
◎ Multiple installation forms, multiple connection forms can be optional
Magnetic Flap Level Transmitter Application Fields
The magnetic flap level gauge can be used for medium level detection of various towers, tanks, groove, spherical containers and boilers. Magnetic flap level gauge can achieve high sealing, anti-leakage and suitable for high temperature, high pressure, corrosion-resistant occasions.
Magnetic Flap Level Transmitter Technical Parameters
| Typical application | Liquid level measurement |
| Measurement range | 0~6m |
| Measuring accuracy | ±3mm, ±5mm (optional) |
| Medium density | ≥0.425g/cm³ |
| Density difference | ≥0.1 g/cm³ |
| Medium viscosity | ≤0.4Pa.S |
| Control output | 220VAC, 1A |
| Transmission output | 4~20mA (power supply 24VDC) |
| Process temperature | -50~+350 °C |
| Process pressure | -0.1~+16MPa |
| Process connection | Flange (optional) |
| Protection grade | IP67 (optional) |
| Explosion-proof grade: | Exia II CT6 Ga, Exd II CT6 Gb (details in certificate) |
Note: Products can be customized according to the specific requirements of users.

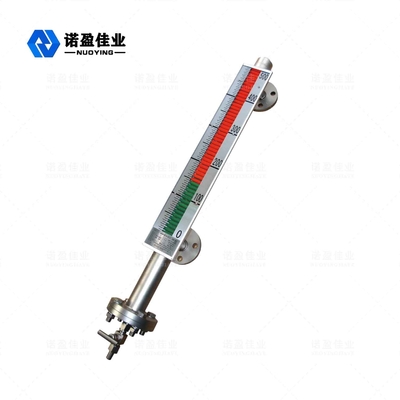

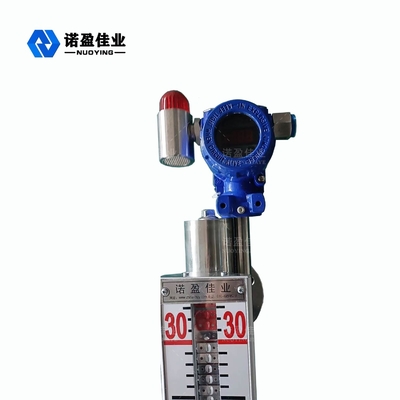

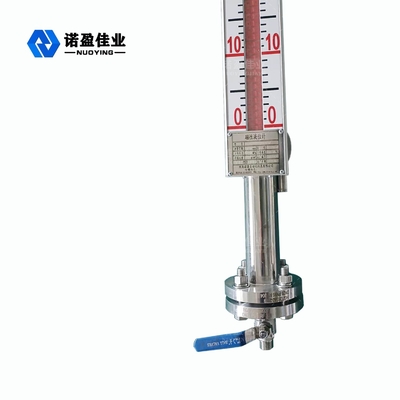

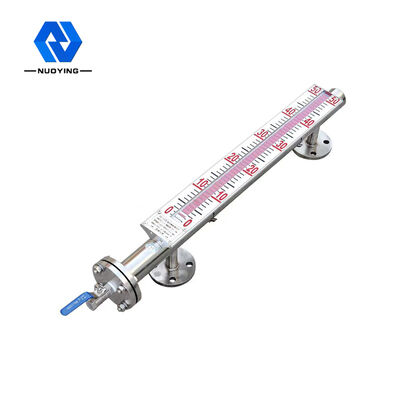

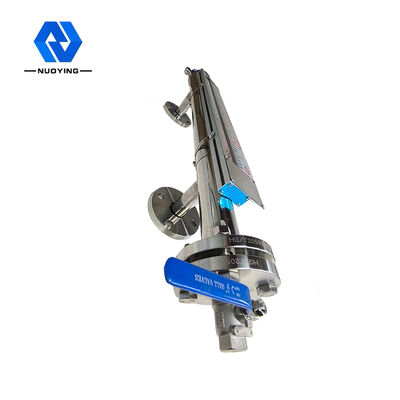

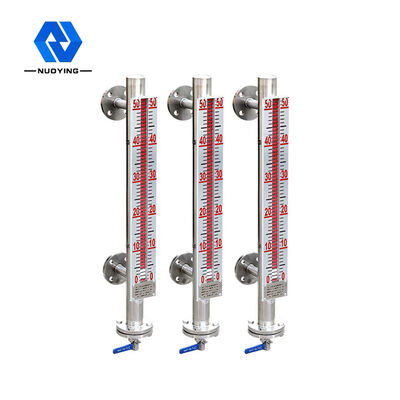

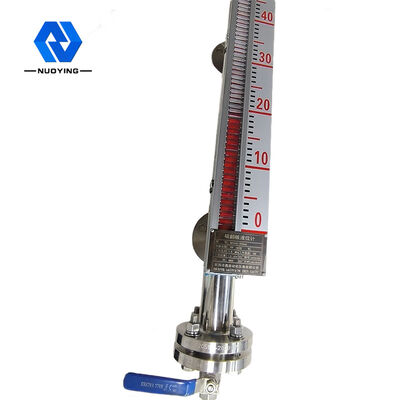

Magnetic Flap Level Transmitter Related Pictures
