| Brand Name: | NUOYING |
| Model Number: | NYUHZ |
| MOQ: | 1 pc |
| Price: | $101~$153/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
Meter Measuring Transmitter Hydrostatic Magnetrol Capicitance Tank Level Gauge Magnetic Water Liquid Level Sensor
Magnetic Liquid Level Sensor Design Features
◎ Design pressure range from full vacuum to 10 MPa
◎ Design temperature range -50~+350℃
◎ Professional design for special pressure and temperature
Magnetic Liquid Level Sensor Application Fields
The magnetic flap level gauge can be used for medium level detection of various towers, tanks, groove, spherical containers and boilers. Magnetic flap level gauge can achieve high sealing, anti-leakage and suitable for high temperature, high pressure, corrosion-resistant occasions.
Magnetic Liquid Level Sensor Technical Parameters
| Typical application | Liquid level measurement |
| Measurement range | 0~6m |
| Measuring accuracy | ±3mm, ±5mm (optional) |
| Medium density | ≥0.425g/cm³ |
| Density difference | ≥0.1 g/cm³ |
| Medium viscosity | ≤0.4Pa.S |
| Control output | 220VAC, 1A |
| Transmission output | 4~20mA (power supply 24VDC) |
| Process temperature | -50~+350 °C |
| Process pressure | -0.1~+16MPa |
| Process connection | Flange (optional) |
| Protection grade | IP67 (optional) |
| Explosion-proof grade: | Exia II CT6 Ga, Exd II CT6 Gb (details in certificate) |
Note: Products can be customized according to the specific requirements of users.

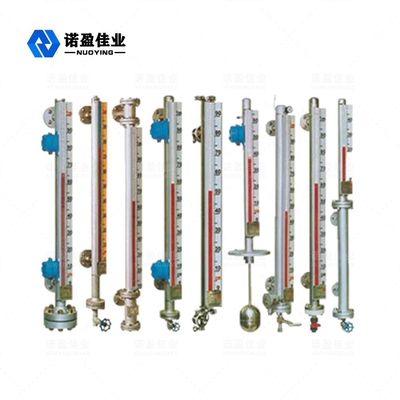

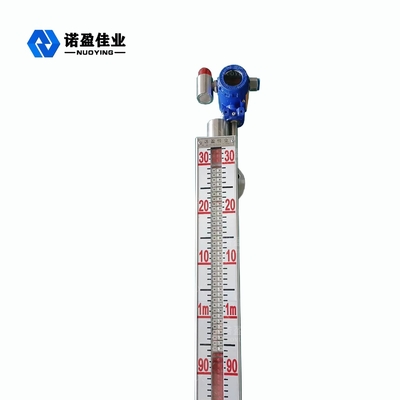

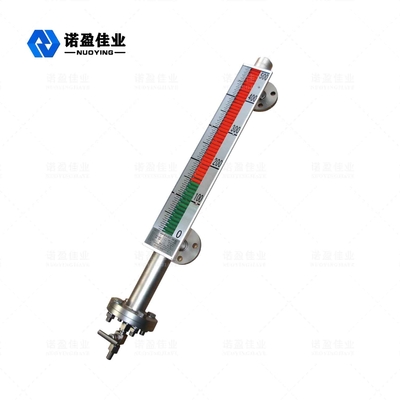

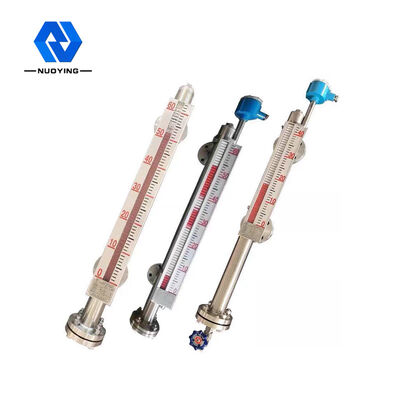

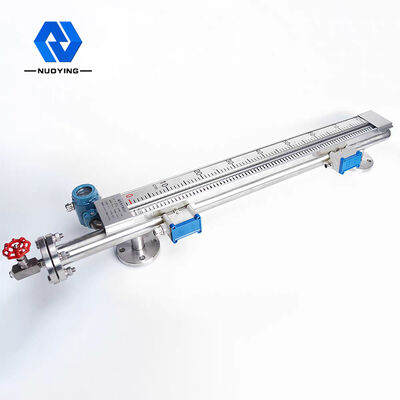

Magnetic Liquid Level Sensor Related Pictures
