| Brand Name: | NUOYING |
| Model Number: | NYCFQ-UK |
| MOQ: | 1 pc |
| Price: | $118~$700/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYCFQ-UK Magnetic Float Level Switch for Water Tanks with CE Certificate SS316L Float Level Transmitter Water Level Float Control Switch Factory Direct Sales
NYCFQ-UK Magnetic Float Level Switch for Water Tanks Design Features
◎ Customized design, multi-point control, wide application range
◎ Simple structure, convenient installation and low maintenance cost
◎ Stable and reliable performance, strong anti-lightning and anti-interference ability
NYCFQ-UK Magnetic Float Level Switch for Water Tanks Technical Parameters
| Product Model | NYCFQ-UK |
| Typical application | Liquid level measurement |
| Float material | F4, PP, 304, PTFE |
| Ambient temperature | -20~+70℃ |
| Medium temperature | -20~+125℃ |
| Signal output | 4-20mA, SPDT |
| Process pressure | -0.1~2.0MPa |
| Medium density | 0.5~2.0g/cm³ |
| Medium viscosity | ≤0.05Pa.S |
| Process connection | flange, thread |
| Protection level | IP65, IP67, IP68 (optional) |
| Explosion-proof grade | Exia II CT6 Ga, Exd II CT6 Gb (details in certificate) |
Note: Products can be customized according to the specific requirements of users.

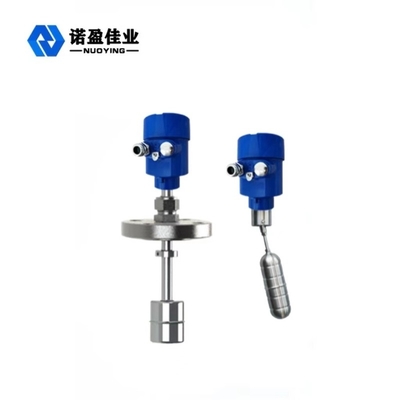

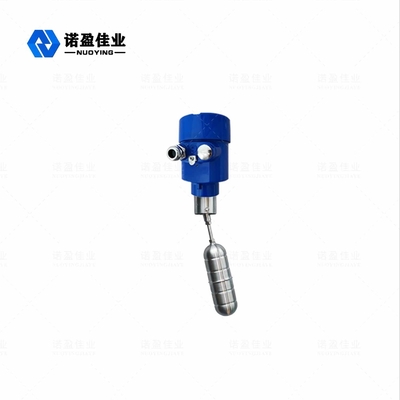

NYCFQ-UK Magnetic Float Level Switch for Water Tanks Related Pictures
