Product Details:
|
| Output Signal: | 4-20mA/HART/RS485 | Pressure Range: | Up To 35kPa |
|---|---|---|---|
| Stability: | Up To ±0.1% Of Upper Range Limit (URL) For 1 Year | Supply Power: | 9-36VDC |
| Range Rate: | 20°C, Range Rate 10:1 | Measure Object: | Liquid/gas/stream |
| Work Temperature: | -40 ～ 85℃ | ||
| High Light: | RS485 Pressure Sensor Transmitter,Pressure Sensor Transmitter 35kPa,35kPa High Precision Pressure Transmitter |
||

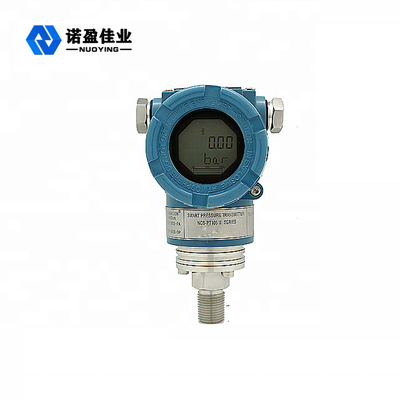

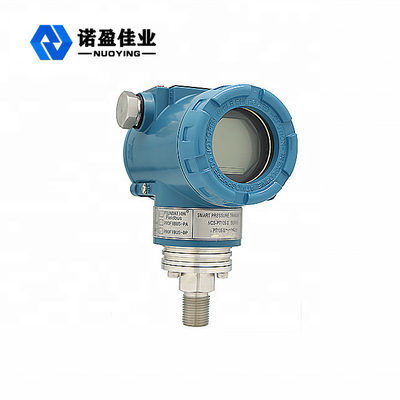

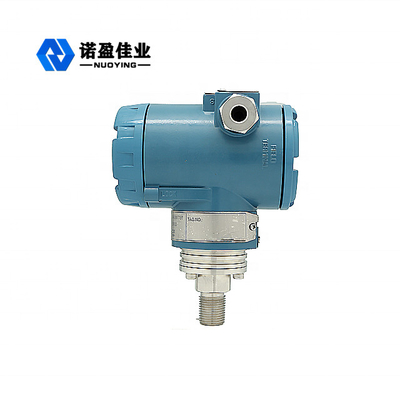

0.075% Accuracy RS485 Protocol Pressure Transmitter
0.075% Accuracy RS485 Protocol Pressure Transmitter Description:
0.075% Accuracy RS485 Protocol Pressure Transmitter Technical Parameters:
| Parameters | |||
| Model | Type | SG | SA |
| NP-3051-SG | Gauge pressure transmitter | Y | N |
| NP-3051-SA | Absolute pressure transmitter | N | Y |
| Code | Range | ||
| F | FF protocol | ||
| P | PA protocol | ||
| H | HART protocol | ||
| 1 | 350 mbar(35 kpa) | ||
| 2 | 1bar(100 kPa) | ||
| 3 | 3.5 bar(350 kPa) | ||
| 4 | 7 bar(700 kPa) | ||
| 5 | 10 bar(1 MPa) | ||
| 6 | 25 bar(2.5 MPa) | ||
| 7 | 35 bar(3.5 MPa) | ||
| 8 | 60 bar(6 MPa) | ||
| 9 | 100 bar(10 MPa) | ||
| A | 350 bar(35 MPa) | ||
| Measure object | Liquid,Gas,Stream | ||
| Power | 9～32V dc (FF , PA) 9～17.5VDC (FF,PA; explosion-proof) 11.9～42VDC (HART) | ||
| 11.9～30VDC (HART; explosion-proof) | |||
| Output | Analog:2 wire 4～20mA | ||
| Digital:HART,FF and PA signal | |||
| Load resistant | 0～1500ohm (common) | ||
| 250～550ohm (use HART) | |||
| Insulation | Voltage between terminal and housing:500Vrms (707VDC) | ||
| Display | Optional 6 bits digital number or 5 bits characters LCD display | ||
| Temperature | Work temperature: -40 ～ 85℃ (without display) | ||
| -30 ～ 70℃ (with display) | |||
| -30 ～ 60℃(explosion-proof IC) | |||
| Store temperature: -40 ～ 100℃ (without display) | |||
| -40 ～ 85℃ (with display) | |||
| Humidity scale | 5%～100%RH | ||
| Start time | ≤ 5 seconds | ||
| Refresh time | 0.2 seconds | ||
| Dump adjusting | Constant of time 0～15 seconds | ||
