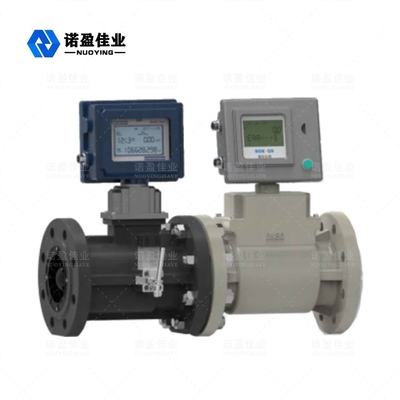

Main circuit board working voltage:6V DC
Model:NYLD-GK
Control valve working voltage:7.2V DC
Range Ratio:1:10
Work stress:DN15~DN50:4.0MPa
Medium viscosity:DN15<5mPa*s
Accuracy class:1.0
Nominal Diameter DN (mm):DN15~DN200
Atmosphericmedium Temperature:-30℃~+65℃
Power supply:12~24VDC
Nominal pressure:1.6MPa
Accuracy class:1.0

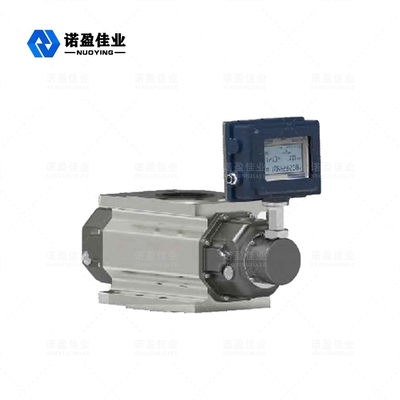

Flow Limit:0~20~1600 M3/h
Model:NYLD-LGQ
Accuracy:±1.0%R,±1.5%R

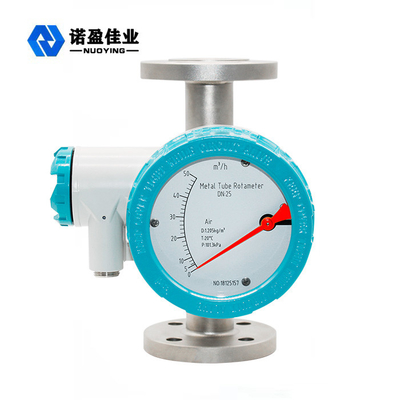

Model:NYLD-GZ
Transmission Distance:≤1000m
Accuracy:±1.5%R
Product name:Hot Flow Switch
Range of flow rate:Water: 0-3 m/s Air: 0-30 m/s
Warm-up time:≤ 3 min

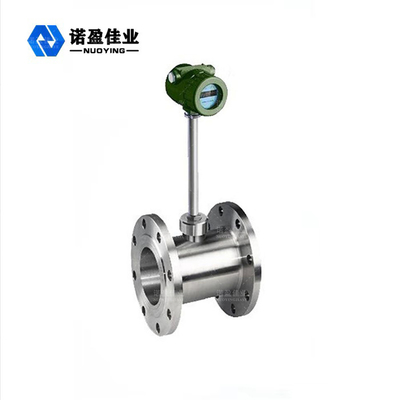

Model Number:NYLU-JB
Power Supply:12~24VDC
Accuracy Class:1.0,1.5
Typical application:Gas flow measurement
Straight pipe:Front 5DN, Rear 3DN
Medium temperature:-20℃~/+80℃
Product name:Hot Flow Switch
Range of flow rate:Water: 0-3 m/s Air: 0-30 m/s
Warm-up time:≤ 3 min
Diameter:DN15~DN200
Measuring tube material:316L, 304, 304 lined with PTFE
Range ratio:Standard type: 10:1; Special type: 20:1
